Carbon Nano Fibers(TNCF TNWCF TNGCF)：
Product Code : TNCF TNWCF TNGCF

Technical Data of TNCF (pdf) (Download)     Technical Data of TNWCF (pdf) (Download)   Technical Data of TNGCF (pdf) (Download)


Product Description:

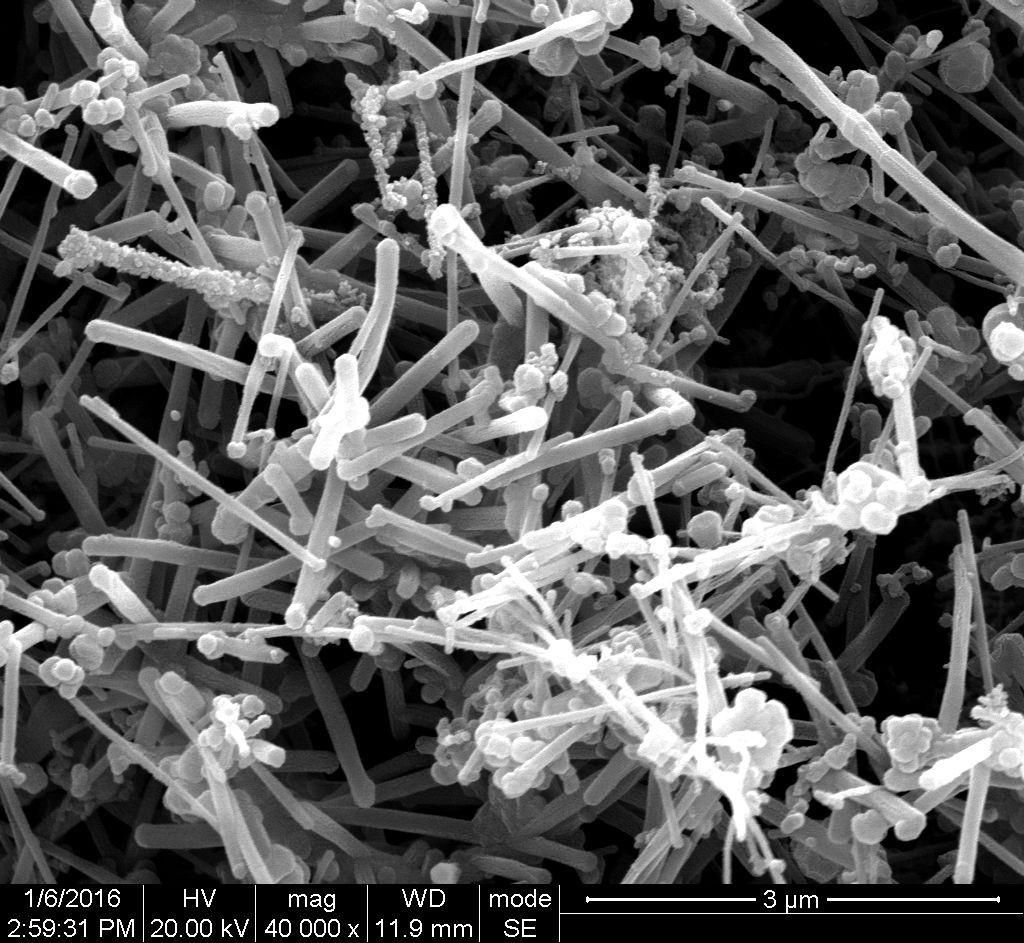

Timestub^TM ---Carbon Nano Fibers (TNCF)----It was produced by xylene catalytic decomposition using ferrocene as catalyst in float reactor. It has a wide diameter distribution. The outer diameter of this product distributes from tens nanometers to hundreds nanometers, and most of the carbon nanofibers has a diameter 200~600nm. It contains a small amount of carbon nanotubes and amorphous carbon.

Property	Unit	Carbon Nano Fibers	Carbon Nano Fibers	-OH Carbon Nano Fibers	-COOH Carbon Nano Fibers	-NH2 Carbon Nano Fibers	Carbon Nano Fibers	Method of Measurement
		TNCF	TNWCF	TNWCFH	TNWCFC	TNWCFN	TNGCF
OD	nm	200-600	50-200	50-200	50-200	50-200	50-200	HRTEM,Raman
Caarbon Nano Fibers Purity	wt%	>70	>95	>95	>95	>95	>99.9	TGA & TEM
Length	microns	5-50	1-15	1-15	1-15	1-15	1-15	TEM
SSA	m2/g	>18						BET
ASH	wt%	<5						HRTEM,TGA
OD=Outer Diameter           ID=Inner Diameter         SSA=Specific Surface Area
